SMALL-SCALE
ST-71
7 kgF THRUST
7 Nm TORQUE
7 Nm TORQUE
Dynotis
ELECTRIC-PROPULSION TEST BENCH
- Up to 1000 Hz data sampling rate.
- %99 full-scale accuracy in thrust and torque measurements.
- 7-160 KGF thrust range.
SMALL-SCALE

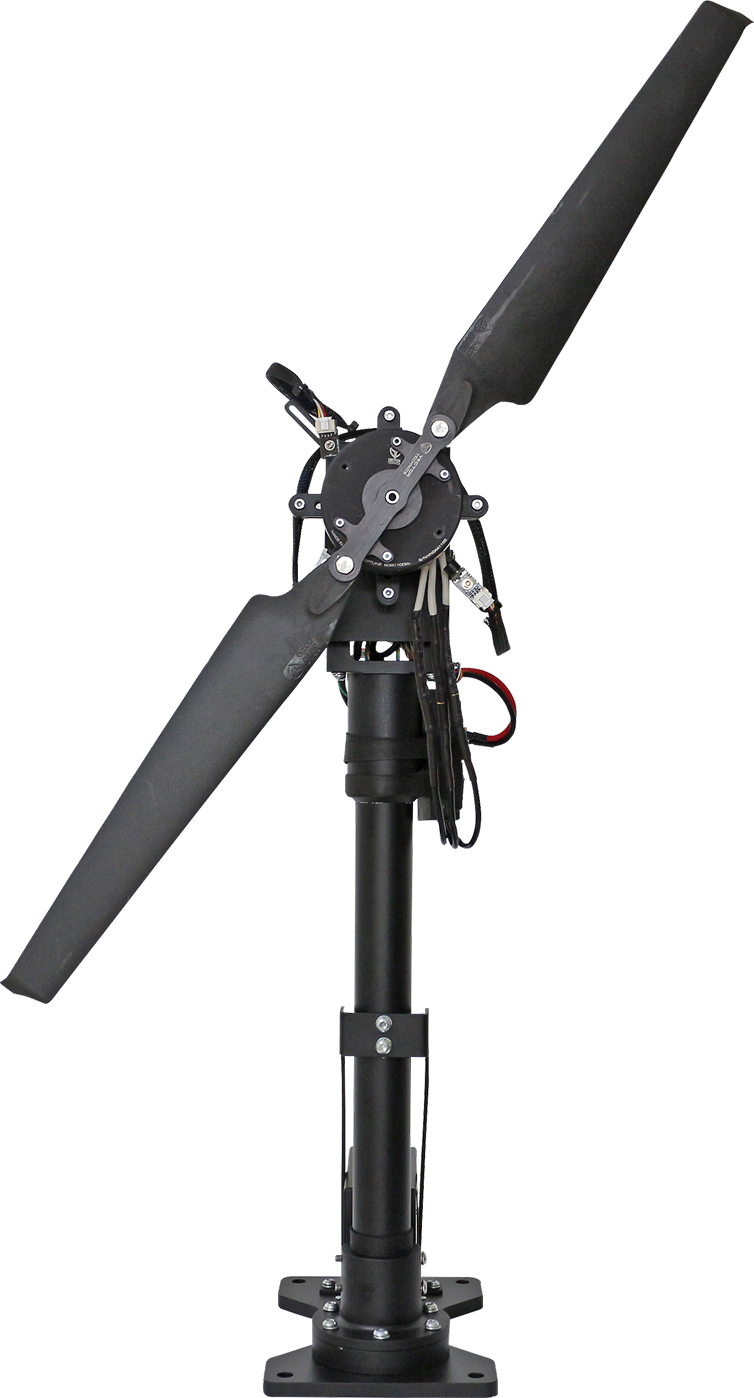

ST-101
10 kgF THRUST
10 Nm TORQUE
10 Nm TORQUE
SMALL-SCALE

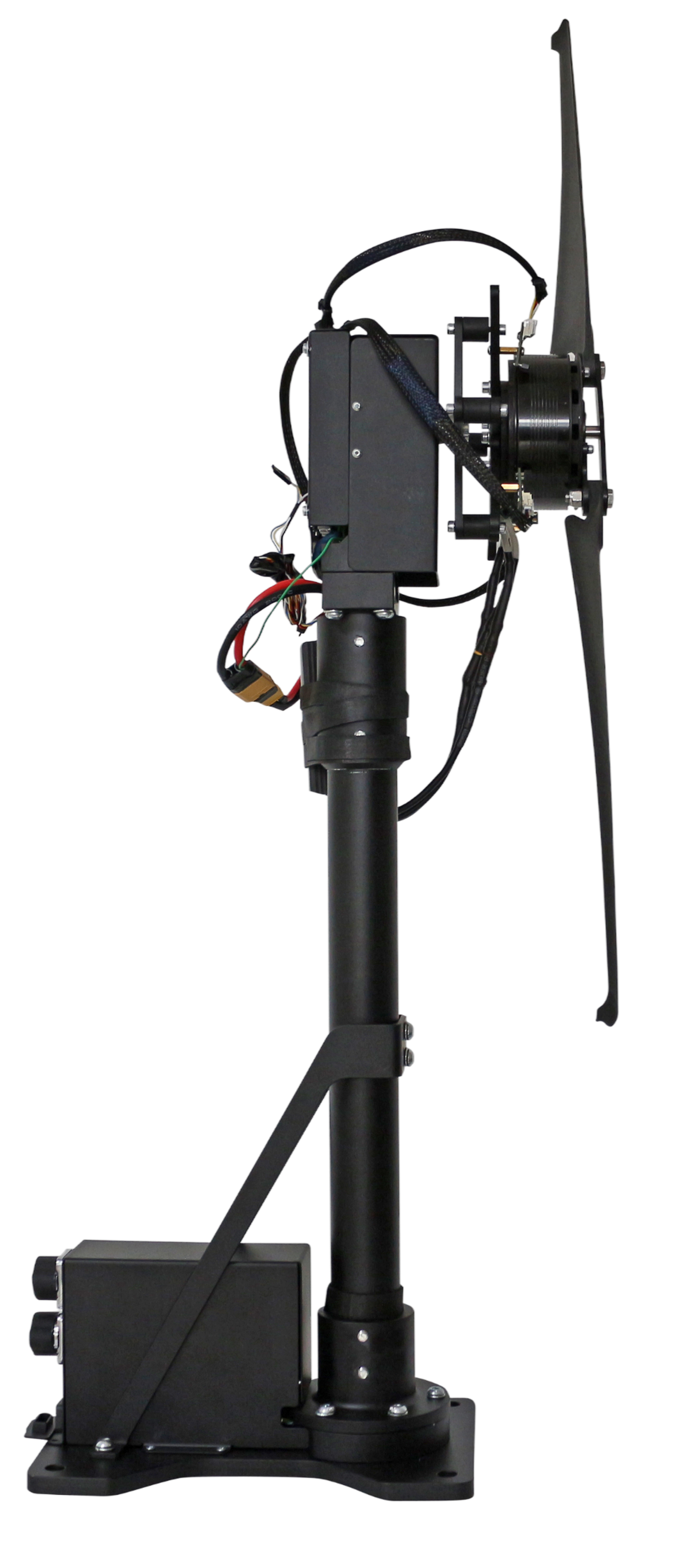

ST-151
15 kgF THRUST
15 Nm TORQUE
15 Nm TORQUE
MID-SCALE

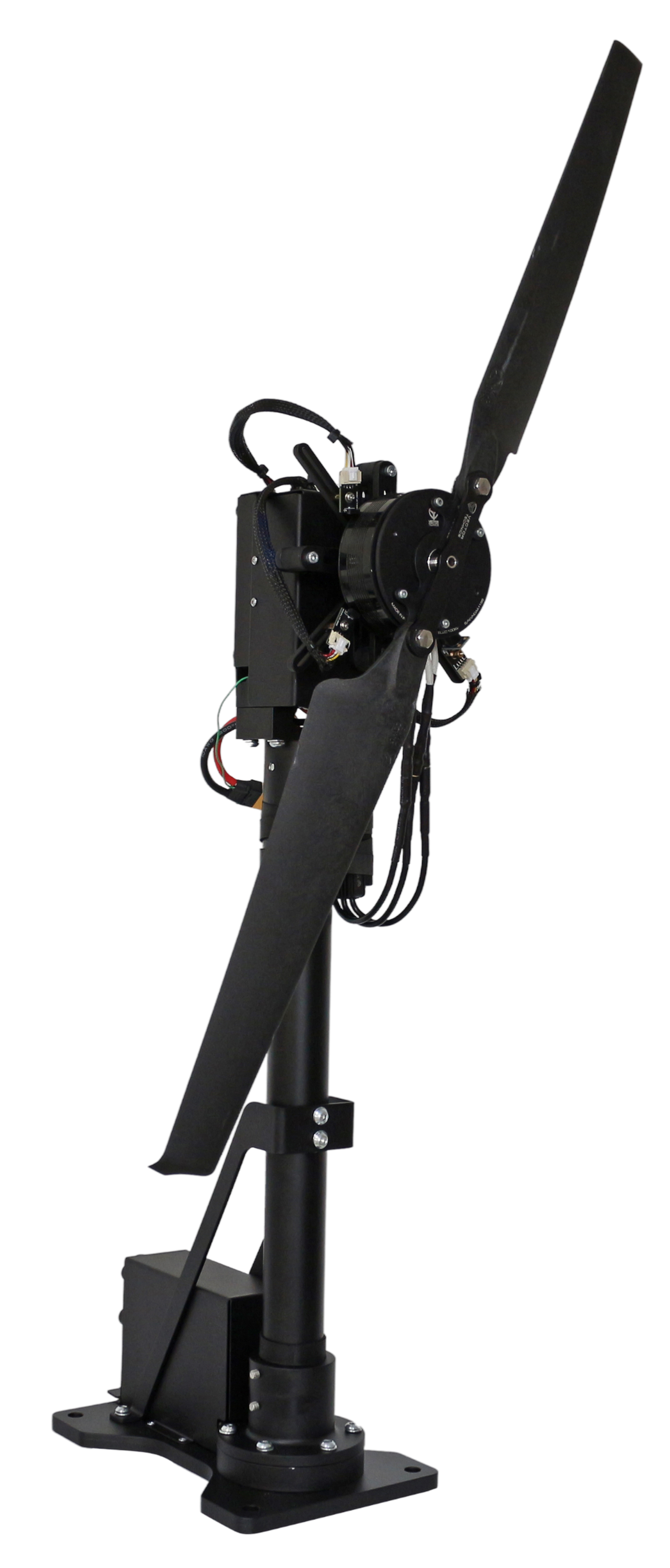

ST-251
25 kgF THRUST
25 Nm TORQUE
25 Nm TORQUE
MID-SCALE

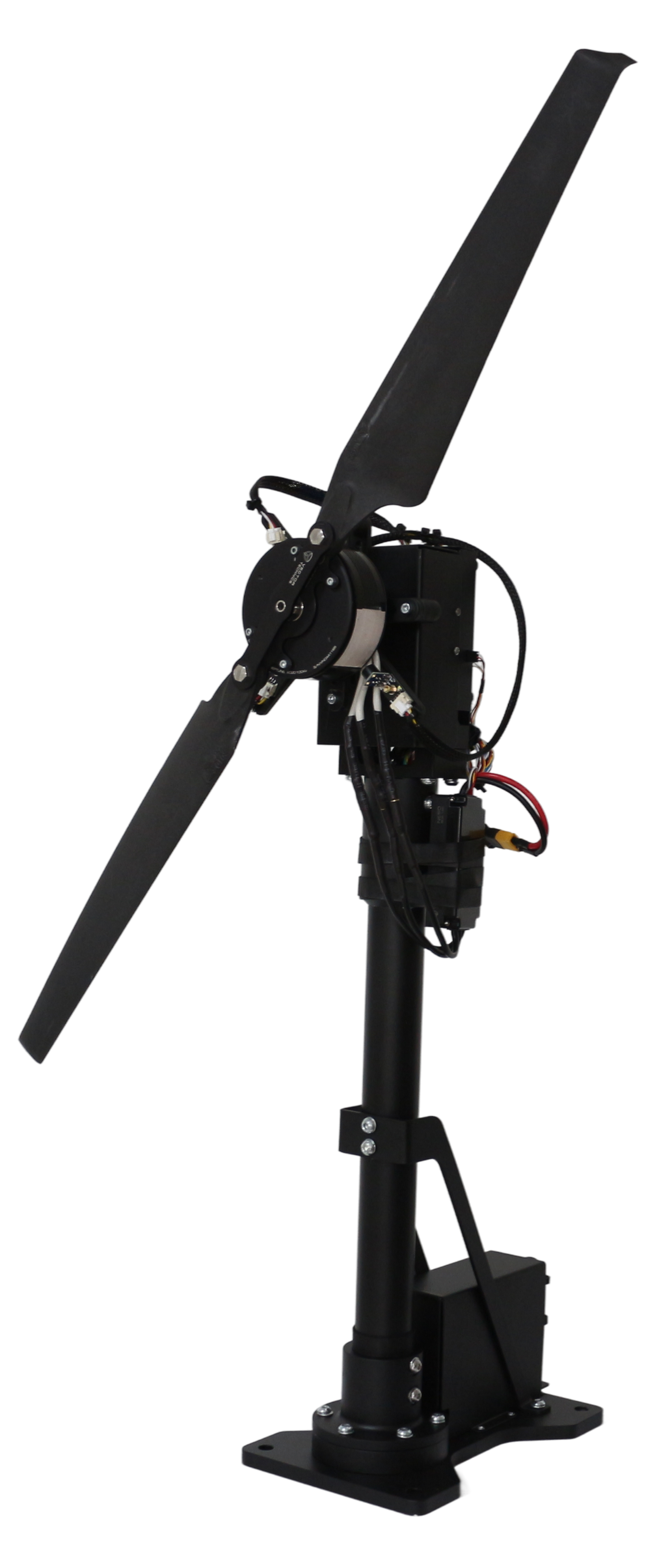

ST-351
35 kgF THRUST
30 Nm TORQUE
30 Nm TORQUE
MID-SCALE

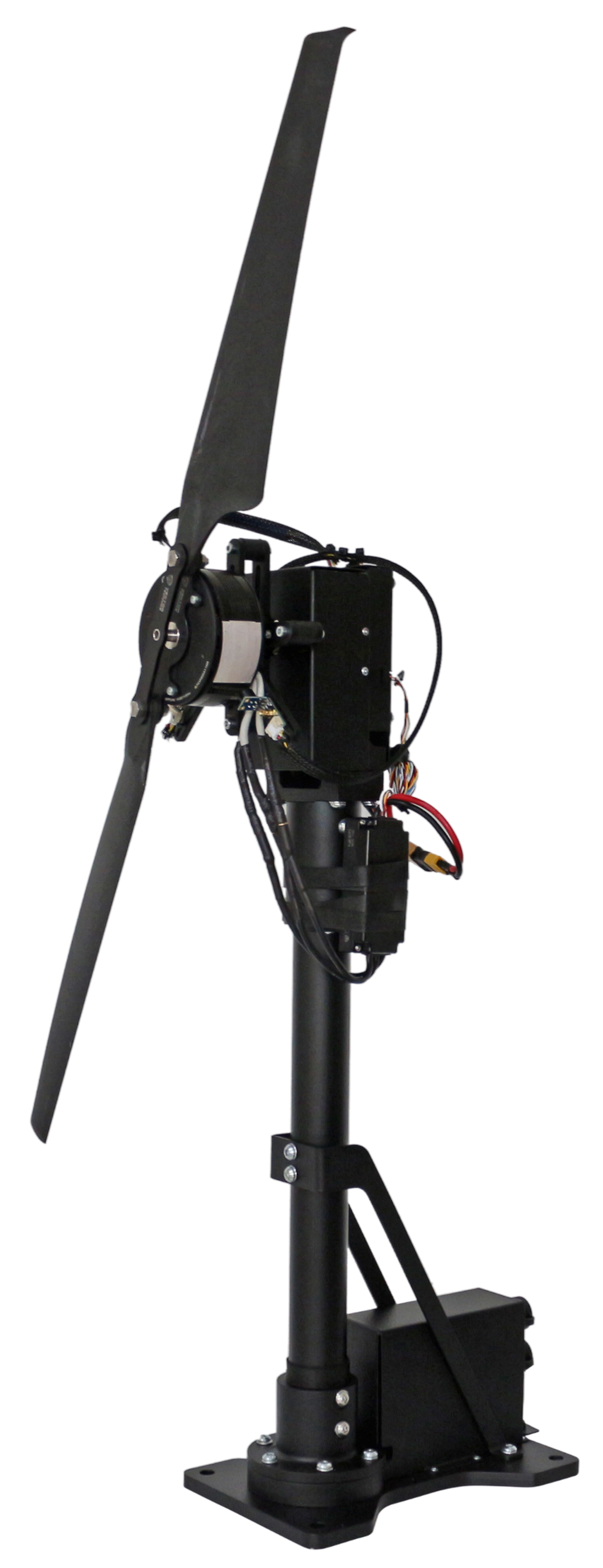

ST-501
50 kgF THRUST
30 Nm TORQUE
30 Nm TORQUE
LARGE-SCALE

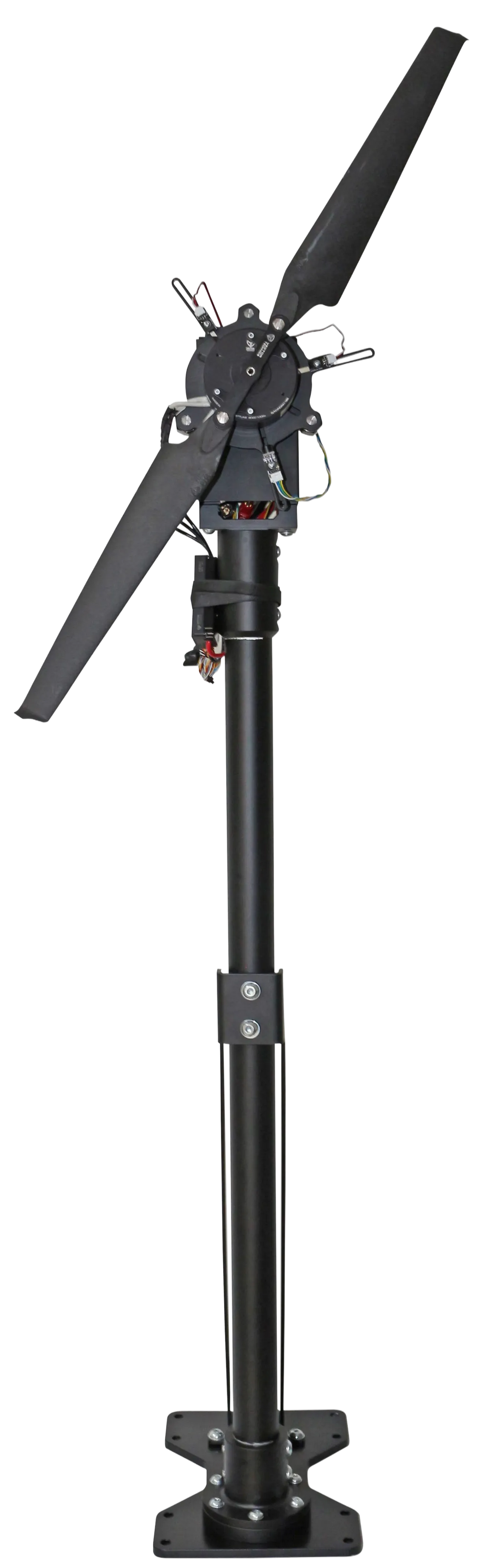

ST-751
75 kgF THRUST
75 Nm TORQUE
75 Nm TORQUE
LARGE-SCALE

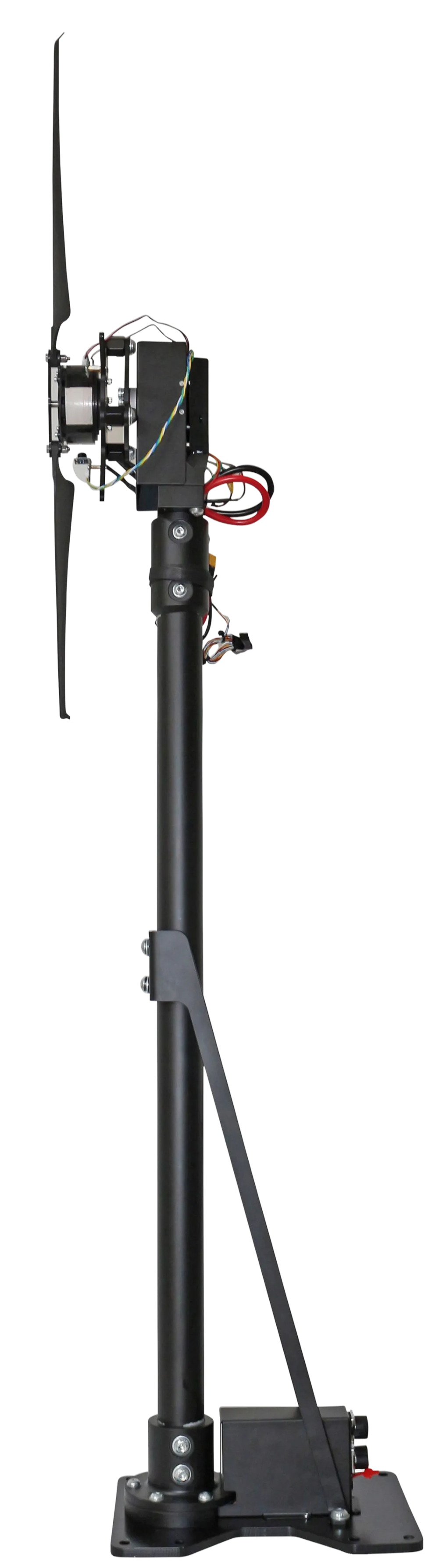

ST-1001
100 kgF THRUST
100 Nm TORQUE
100 Nm TORQUE
LARGE-SCALE

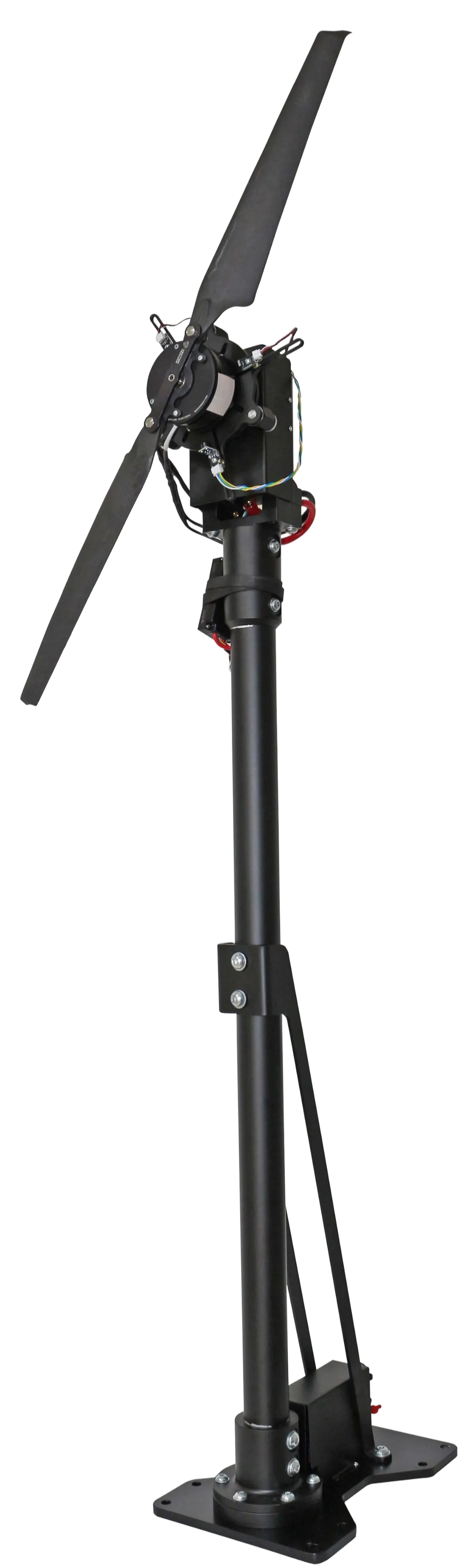

ST-1601
160 kgF THRUST
160 Nm TORQUE
160 Nm TORQUE
FAQ
Frequently asked questions
The Dynotis system is a high-precision electric propulsion test stand engineered to measure the thrust, torque, RPM, and electrical efficiency of UAV motors and propellers. It serves as a comprehensive testbench for aerospace engineers and researchers conducting a rigorous electric motor test, enabling them to gather highly reliable aerodynamic data for powertrain optimization and flight time maximization.
When conducting an electric motor test, the Dynotis testbench simultaneously records all critical performance metrics. This includes thrust, torque, voltage, current, RPM, vibration, motor temperature, and ambient temperature/pressure. By capturing these data points in real-time, the propulsion test stand provides a complete picture of your hardware's capabilities.
Yes, the Dynotis propulsion test stand is available in multiple model configurations (ranging between the ST-71 and ST-1601) to accommodate a vast range of motor sizes and propeller clearances. Whether you are testing small multicopter powertrains or heavy-lift eVTOL systems, there is an electric propulsion test stand capacity suitable for your specific electric motor test requirements.
No, the primary control and data acquisition software is included completely free of charge with your electric propulsion test stand straight out of the box. There are no recurring subscription fees, and you can install the software on as many computers as your team needs to monitor, control, and export data from your electric motor test sessions.
For optimal data integrity and operational safety during a high-capacity electric motor test, we strongly recommend mounting the testbench directly to the floor. Securing the propulsion test stand to the ground using our provided mounting plates completely avoids the structural resonance and vibration issues commonly associated with benchtop testing.
The Dynotis electric propulsion test stand guarantees 99% full-scale accuracy post-calibration. Rather than using generic, independent single-axis load cells, the testbench utilizes a custom-integrated thrust and torque transducer head. This cross-talk compensated system eliminates axis interference, ensuring highly precise and repeatable results for every electric motor test.
After your electric propulsion test stand is delivered, our team provides comprehensive support to ensure your facility is up and running safely. Each testbench includes detailed digital user manuals featuring step-by-step hardware installation and floor-mounting guides. Furthermore, we provide dedicated online training sessions via Microsoft Teams to walk your engineering team through the software setup, safety protocols, and operational best practices before you conduct your first electric motor test on the propulsion test stand.
ADD-ON
Configure your system with our additional packs

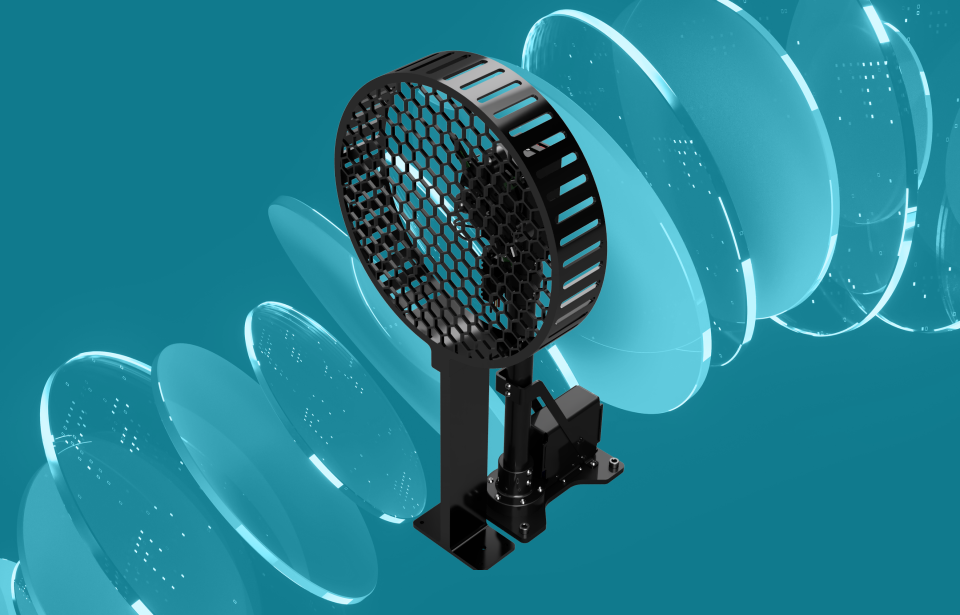

Education Kit
01The Dynotis Education Kit offers a hands-on learning experience in electric propulsion with a simple, safe, and reliable setup. Perfect for students and educators, it allows practical demonstrations of aerodynamic principles in a classroom environment. Available for small-scale models only.
Dynamic Balancer Module
02This software/hardware add-on enables real-time vibration analysis and precise dynamic balancing of propellers and rotors directly on the test stand. In compliance with ISO 21940, it ensures higher efficiency, reduced noise, and extended lifespan for your propulsion components.

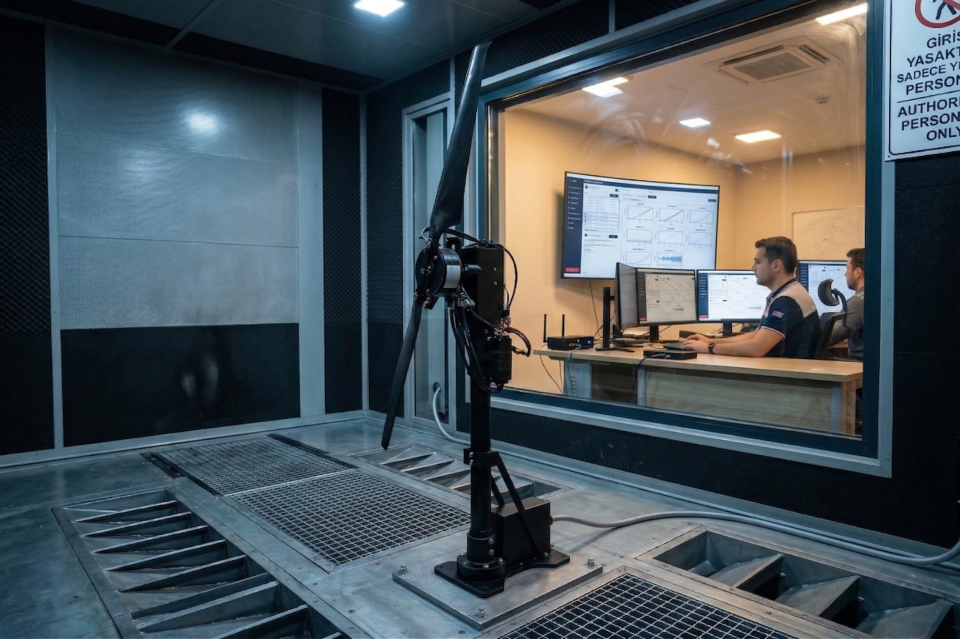

Wi-Fi Module
03Easily connect your Dynotis electric propulsion test stand to your PC via Wi-Fi, providing you with superior flexibility and a clutter-free workspace. This module allows for remote data monitoring and control, making your testing process more convenient, especially for institutions with separate test chambers and control rooms.

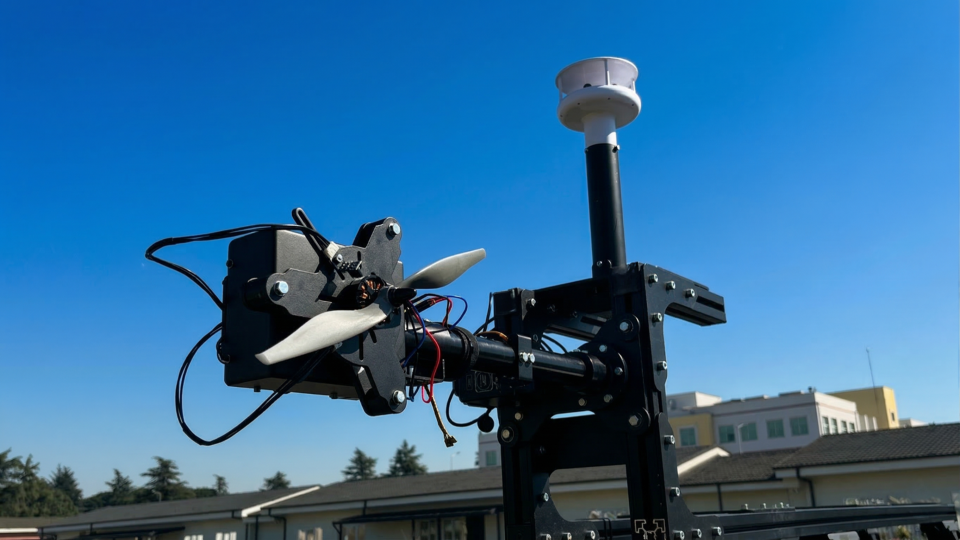

Outdoor Testing Kit
04Designed to eliminate the need for expensive wind tunnels, this kit allows you to mount your test stand on a moving vehicle to simulate real-world flight conditions. It provides a hassle-free testing experience that saves time and resources while delivering accurate performance data.

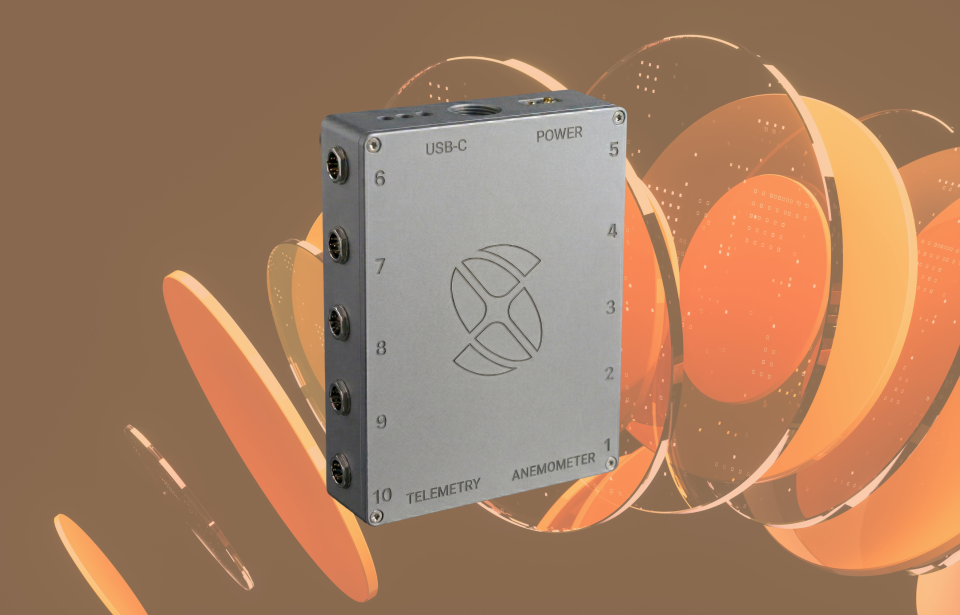

Synchronous Hub
05Connect and control multiple Dynotis devices from one computer. The Synchronous Hub records data from all connected test stands and sensors at the same time, keeping everything synchronized for easier analysis and more accurate system performance evaluation. If you like to use our other add-ons like Outdoor Testing Kit and Wi-Fi Module simulataneously, Synchronous Hub is your gateway to do so.

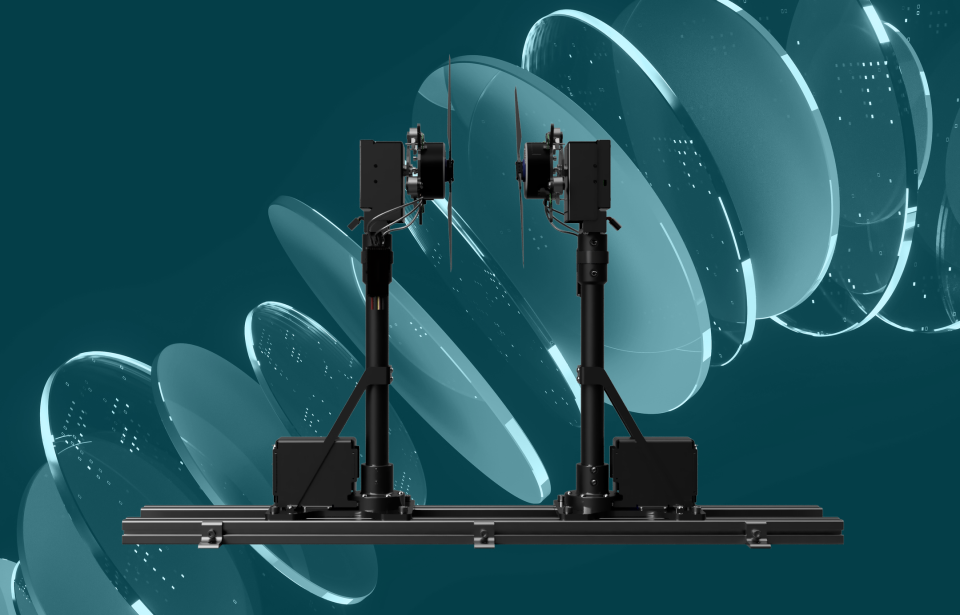

Co-Axial Setup
06Unlock the full potential of contra-rotating propulsion with the Coaxial Setup. This comprehensive package combines a precision-engineered Coaxial Mounting Rig with the Synchronous Hub, allowing you to mount two motors on a single axis with perfect alignment. It enables the simultaneous control and synchronized data recording of both propulsion units, giving you the critical insights needed to optimize the efficiency and thrust interaction of your coaxial designs.
Pro Model
07The Pro Model offers an optional certification package for mission-critical R&D and aerospace compliance. Each load cell undergoes rigorous testing and certification by the Turkish Standards Institution (TSE) to ensure world-class data integrity. Torque Axis: Compliant with ASTM E2428 and DIN 51309:2022. Thrust Axis: Compliant with ISO 376 and ASTM E74. All units include a formal certificate detailing measurement uncertainties, accuracy values, and validation results, providing the high-level traceability required for defense and certification-grade testing.
ESC Temperature Sensor
08Observe the thermal behavior of your ESC with real-time monitoring. This plug-and-play sensor logs the thermal changes of your ESC during the operation, delivering high-fidelity data to your Dynotis dashboard for efficiency calculations.
