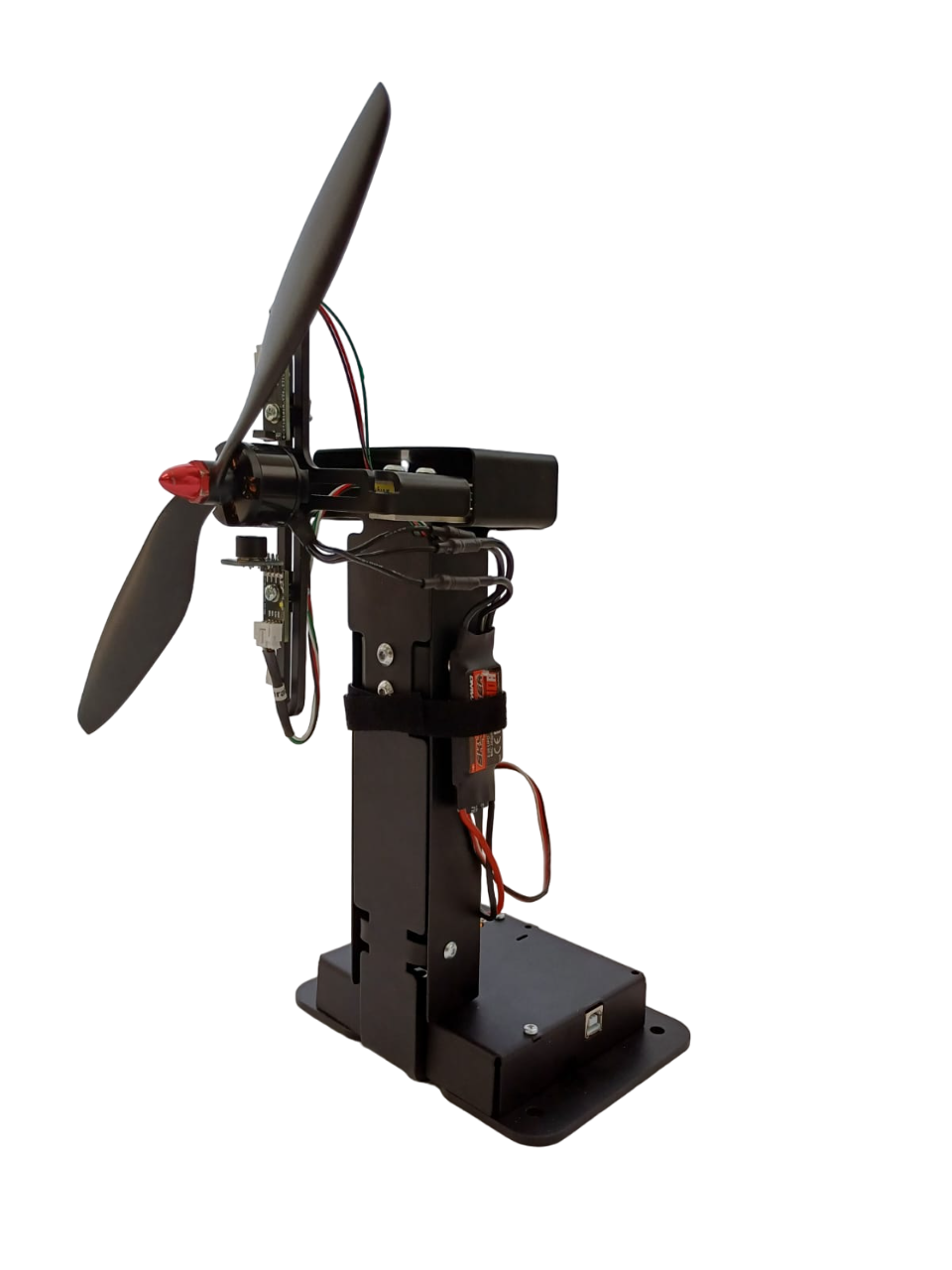

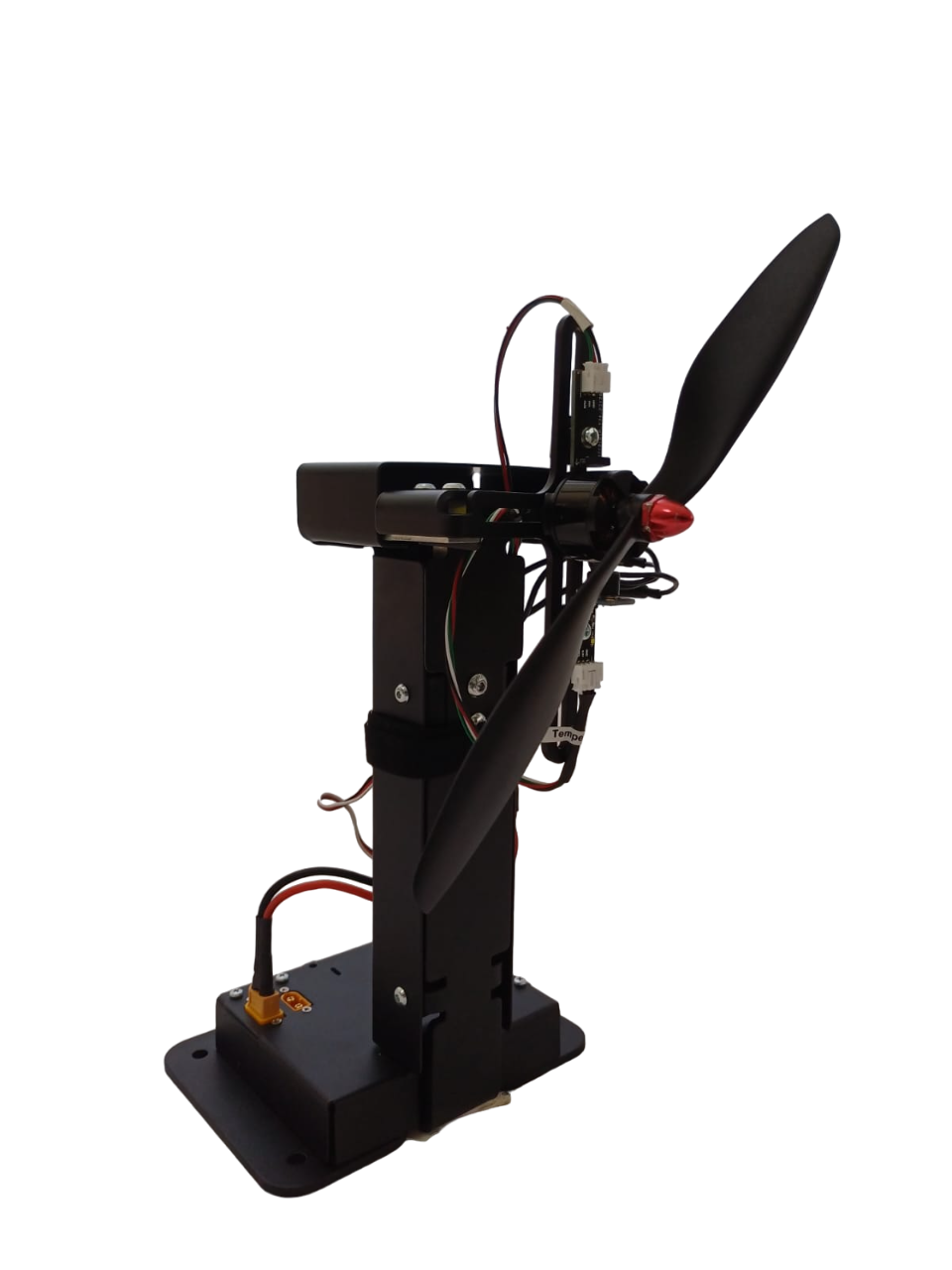

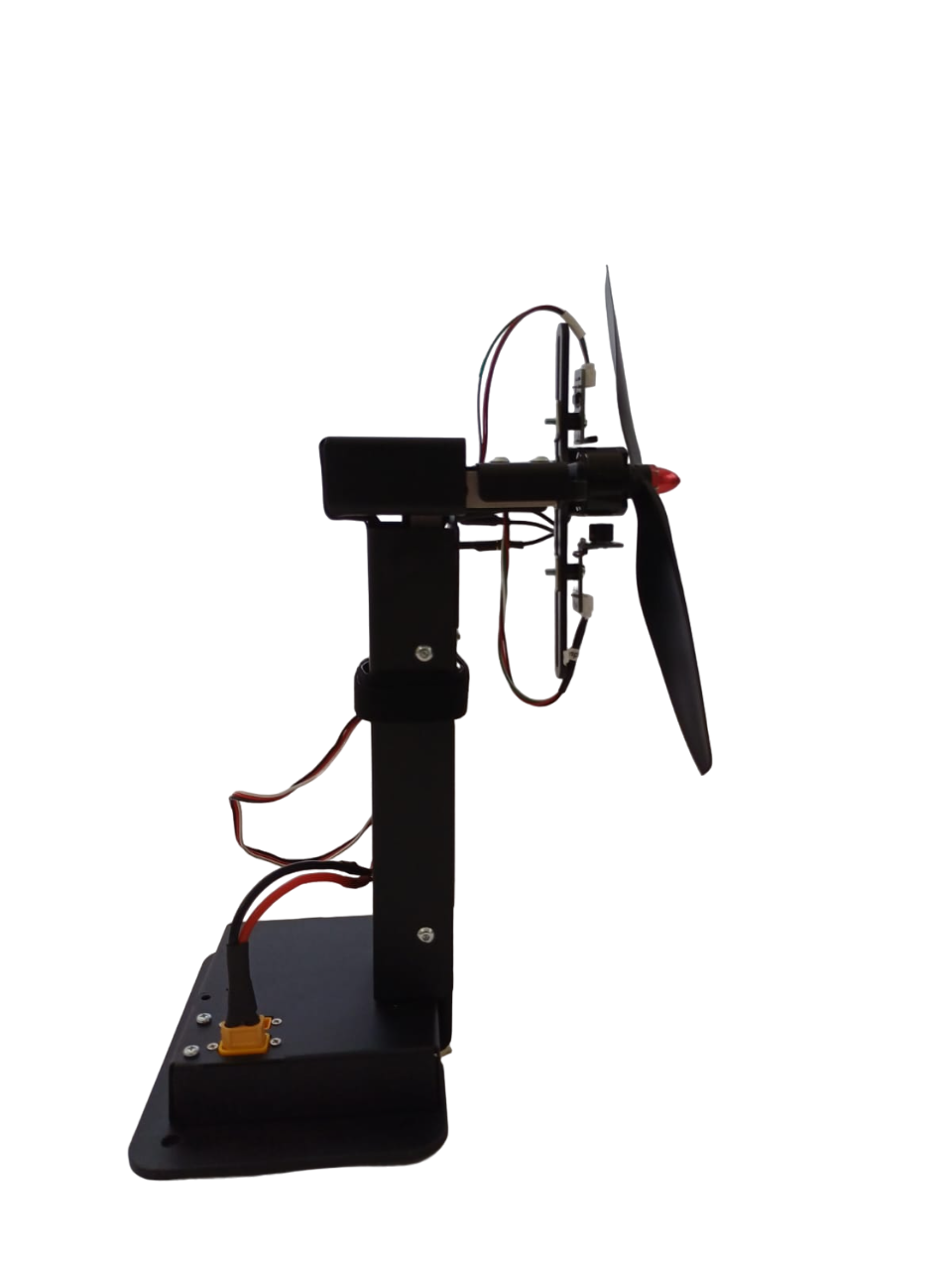

Dynotis ST-51

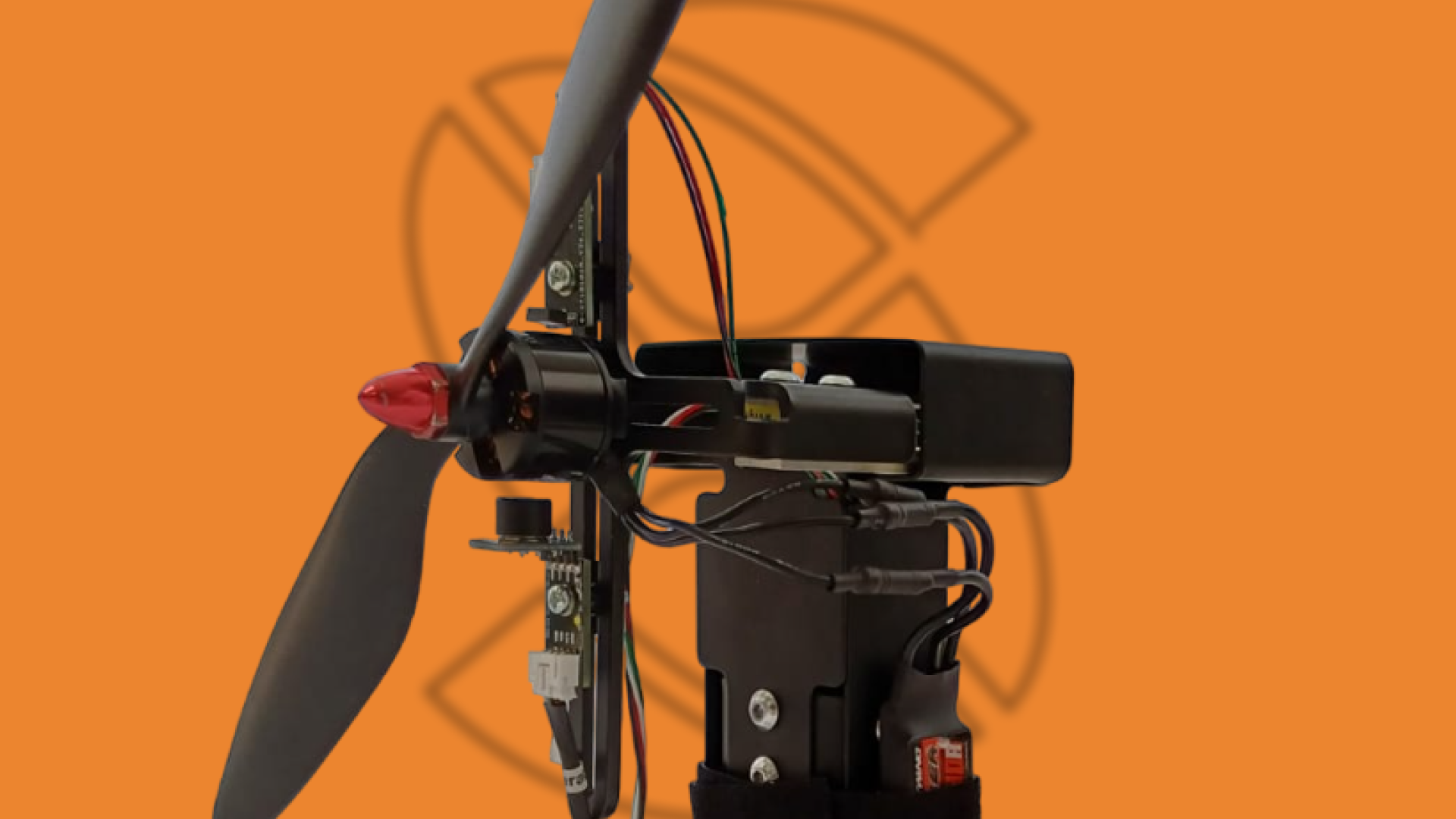

Unmatched Precision

Small But Mighty

Dynotis provides the repeatable measurement foundation required for rigorous R&D, empowering your team to pinpoint optimal configurations with data-driven certainty. We stand behind our hardware with a promise of over 99% accuracy in thrust and torque for every unit's full-scale capacity.

Integrated Analysis

Log it, Analyze it, Compare it.

Every design iteration is logged and tracked via our comprehensive software dashboard, allowing you to visualize efficiency curves and compare performance over time. With features like automatic test scripts and API integration, you can seamlessly integrate Dynotis test stands in to your testing procedure.

Accelerated R&D

Stop guessing and start optimizing.

Dynotis allows your team to rapidly benchmark motor-propeller combinations and identify peak efficiency before the first flight. Our automated testing environment drastically reduces the time spent on manual measurements and prevents costly prototype attrition, ensuring your propulsion system is mission-ready in a fraction of the time.

Technical Specifications

ST-51

Basic Information	Model	ST-51
	Power Supply	5V 1A USB Type-B
	Storage Temp & Humidity	-20°C 〜 +60°C = ‹ 90% suggested
	Operating Temp & Humidity	-20°C 〜 +50°C = ‹ %75 suggested
	Dimensions	160 x 166,3 x 295 mm
	Net Weight	2.1 kg
	Maximum Propeller Diameter	18"
	Sampling Rate	10 Hz
Voltage and Current	Voltage Range	5 - 60 V
	Voltage Resolution	0.015 V
	Voltage Error	±0.5%
	Current Range	0 - 75 A
	Current Resolution	0.02 A
	Current Error	±0.3%
Thrust	Thrust Range	±0.1 - 5 kgF
	Thrust Resolution	0.001 kgF (1 gF)
	Thrust Accuracy	%99 Full Scale
Torque	Torque Range	±0.1 - 5 Nm
	Torque Resolution	0.001 Nm (1 Nmm)
	Torque Accuracy	%99 Full Scale
Sensor Measurements	Maximum Rotation Speed	60 000 RPM
	Motor Temperature Range	-20 〜 +350 °C
	Motor Temperature Error	±1 °C
Measured / Calculated Values	Power (W)	+
	Figure of Merit (%)	+
	Propulsion System Efficiency (%)	-
	Propulsion System Efficiency (gram/W)	+
	Motor Efficiency (%)	+
	Vibration (g)	-
